Stand Mixer Drive System: How Motor Power Reaches the Bowl
Follow how motor output passes through speed control, transmission, main shaft and planetary mechanism to produce the final mixing action under load.
Why Stand Mixer Drive System Design Matters
A stand mixer does not rely on the motor alone to produce effective mixing performance. The motor, speed control, transmission, main shaft, planetary mechanism and supporting mechanical structure must work together as one complete drive system.
The way these elements are matched affects torque delivery, operating speed, speed stability, noise, vibration, thermal performance, durability and the mixer's ability to handle its intended load.
A stand mixer drive system should be evaluated as a complete system rather than as a collection of independent components.
What Is a Stand Mixer Drive System?
The stand mixer drive system is the complete electromechanical and mechanical path through which motor output is generated, controlled, transferred and finally delivered to the mixing tool.
The supporting mechanical structure maintains the position, alignment and load support of these components so that the complete drive system can operate consistently under the intended working conditions.
From Motor Power to Planetary Mixing Action
Motor power does not reach the food load directly. It passes through several functional stages, with each stage influencing the speed, torque, stability and mechanical behavior available at the mixing tool.

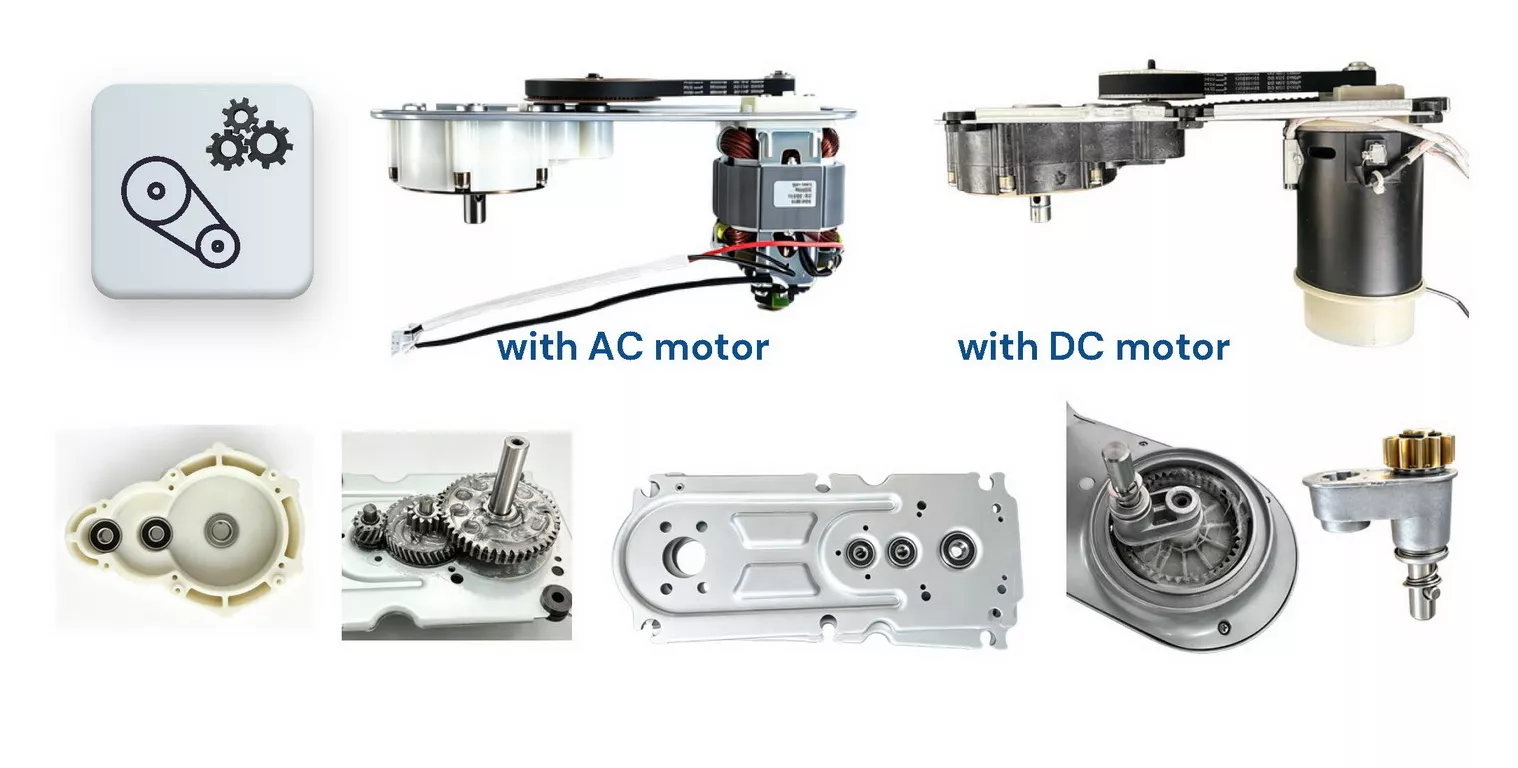

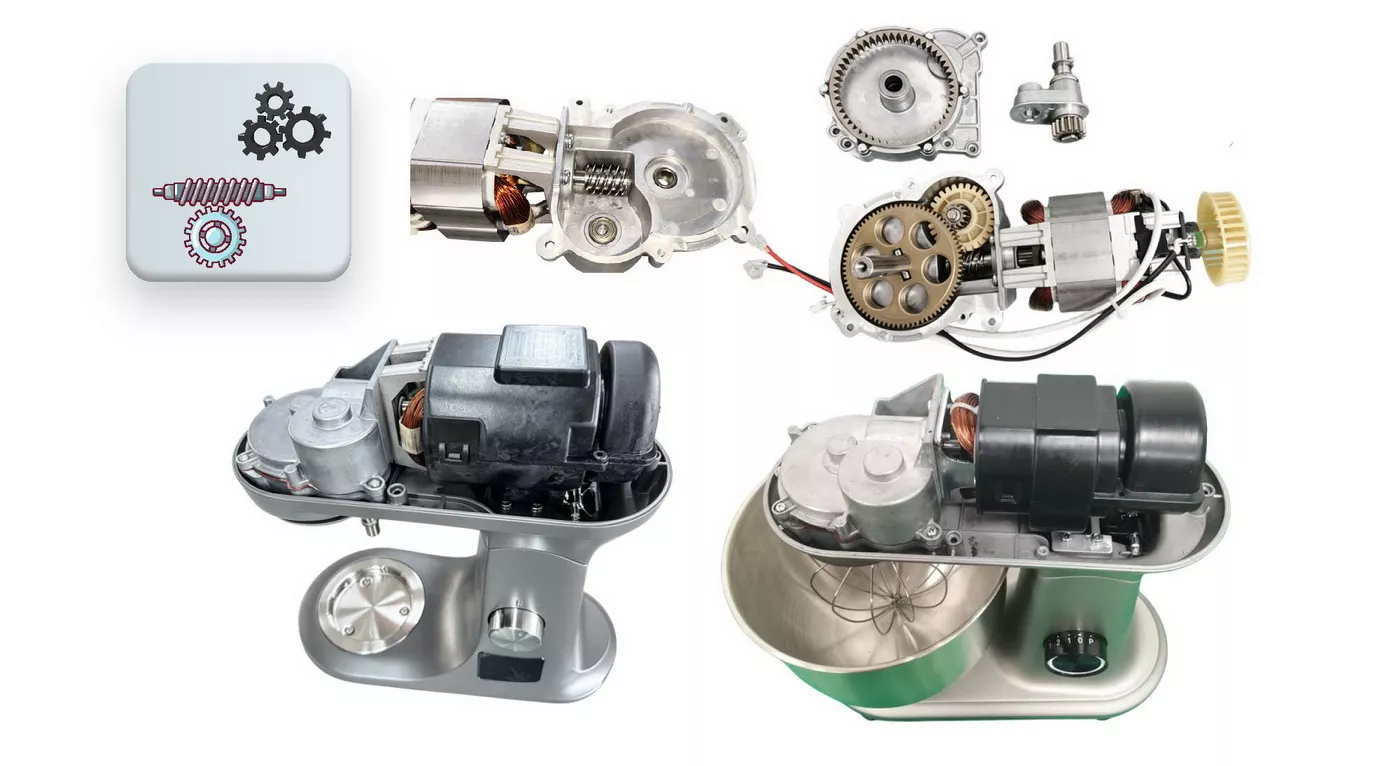

Inside a Stand Mixer Drive System
Internal drive-system components provide direct physical evidence of how motor output is transferred through the transmission toward the main shaft and planetary mixing mechanism. The exact power path and number of transmission stages vary by stand mixer platform.
Motor, Speed Control and Transmission
The motor, speed control and transmission form the upstream part of the drive system. They determine how mechanical power is generated, regulated and transferred before it reaches the main shaft and planetary mechanism.
Transmission and Main Shaft
The transmission transfers the motor's mechanical output toward the main shaft. Gear ratios and transmission architecture influence the relationship between motor speed and the speed and torque available further downstream in the drive system.
Different transmission architectures can therefore be appropriate for different stand mixer platforms. The important consideration is whether the selected system can deliver the required output under the intended operating conditions.
For a detailed comparison of belt-and-gear and worm-and-gear transmission architectures, see SMTG02 — Stand Mixer Transmission Systems: Belt Drive vs Worm Gear.
Main Shaft and Planetary Mixing Mechanism
After the transmission stage, rotational output is delivered through the main shaft to the planetary mechanism. This mechanism produces the characteristic movement used by a planetary stand mixer.
The mixing tool rotates around its own axis while also moving around the bowl area. This combined motion helps the attachment reach different areas of the bowl during whipping, mixing and kneading.
Why Mechanical Structure Matters
The drive system also depends on the structure supporting it. Motor mounts, gearbox structure, shafts, bearings, internal support plates and related mechanical components help maintain alignment and control mechanical loads during operation.
How Does the Complete Drive System Work Together?
Drive-system performance is the result of interactions between multiple components. A change in one part can alter the operating conditions of other parts, which is why individual specifications should not be evaluated in isolation.
| System Element | Main Role | Potential Performance Impact |
|---|---|---|
| Motor | Generates mechanical power | Power, torque, speed and thermal behavior |
| Speed Control | Regulates motor operation | Speed response and operating consistency |
| Transmission | Transfers and adapts motor output | Output speed, torque, noise and mechanical efficiency |
| Main Shaft | Transfers rotational output to the planetary mechanism | Output stability, alignment and load transfer |
| Planetary Mechanism | Produces planetary mixing-tool movement | Mixing action, mechanical loading and tool movement |
| Mechanical Structure | Supports and constrains the complete system | Alignment, vibration, stability and durability |
What Should B2B Buyers Check?
B2B buyers do not need to redesign the drive system themselves, but they should understand whether the supplier has properly matched the major components for the intended application.
- Motor type and characteristics
- Power and operating speed range
- Speed-control configuration
- Behavior under representative load
- Transmission architecture
- Gear and drive configuration
- Suitability for intended load
- Noise and mechanical behavior
- Main-shaft support
- Mechanical alignment
- Structural stability
- Planetary mechanism behavior
- Representative load testing
- Speed and operating stability
- Noise, vibration and temperature
- Durability-test evidence where appropriate
BESDA Technical Perspective
Drive-System Performance Is a Complete-System Result
A reliable stand mixer drive system requires the motor, speed control, transmission, main shaft, planetary mechanism and supporting mechanical structure to be properly matched as one complete system.
For B2B product development and purchasing, evaluating the complete drive system under representative operating conditions provides a more useful understanding of real-world performance than evaluating any single component in isolation.
