Home >

Resources >

Technical Guides >

SMTG05 - Stand Mixer Gear Systems

Stand Mixer Gear Systems: Materials, Design and Durability

Understand how gear materials, geometry, manufacturing accuracy, heat treatment, lubrication, mechanical support and operating load influence stand mixer transmission durability.

Why Stand Mixer Gear Systems Matter

Gears are key mechanical components within a stand mixer transmission. They transfer torque, reduce rotational speed and help deliver the required output characteristics to the mixing mechanism.

Gear-system performance can influence torque transmission, operating noise, wear, durability and mechanical stability. However, gear material alone does not determine the quality or service life of the transmission.

→ Key Point:A reliable gear system depends on the combination of material, gear geometry, manufacturing accuracy, heat treatment where applicable, lubrication, shaft and bearing support, alignment and actual operating load.

QUICK ANSWER

“Metal gears” alone do not define a durable stand mixer transmission.

Material

Gear material influences strength, wear behavior, manufacturing options and cost, but must be matched to the intended application.

Design & Manufacturing

Gear geometry, dimensional accuracy, engagement, shaft support and manufacturing consistency influence actual mechanical performance.

Operating System

Lubrication, alignment, gearbox structure, load and operating conditions affect wear, noise and long-term durability.

→ Buyer Note: Ask how the complete gear system is designed and validated—not simply whether the gears are metal.

How Do Stand Mixer Gears Work?

Within the transmission, gears work together with the motor and other mechanical components to convert motor output into the speed and torque required by the mixing mechanism.

Motor
Generates mechanical output

→

Transmission
Transfers & reduces speed

→

Gear System
Transfers torque

→

Main Shaft & Planetary
Drives the attachment

The exact power path depends on thetransmission architecture. Gear ratios, component geometry and mechanical losses all influence the speed and torque ultimately delivered to the mixing mechanism.

Stand Mixer Gear Materials

Different materials can be used for different gears within a stand mixer. The appropriate choice depends on gear geometry, expected load, operating temperature, wear requirements, manufacturing process and target product positioning.

Powder Metallurgy Steel

Powder metallurgy can provide a practical solution for selected gear designs where production consistency, complex geometry and suitable mechanical properties are required.

Other Metal Gear Solutions

Machined or otherwise manufactured metal gears may be used where their material properties, geometry and manufacturing process suit the required mechanical performance.

Engineering Plastics

Engineering plastics can be appropriate for selected gear applications when load, temperature, wear and dimensional requirements are compatible with the material.

→ Engineering Principle:Material should be selected according to the function of the individual gear and the complete transmission design. “All-metal” is not, by itself, a complete measure of transmission quality.

Gear System in a Complete Transmission Assembly

The following BESDA Worm + Gear example shows why gears should not be evaluated as isolated components. Gear performance also depends on the surrounding gearbox, shafts, bearings, alignment, lubrication and mechanical support.

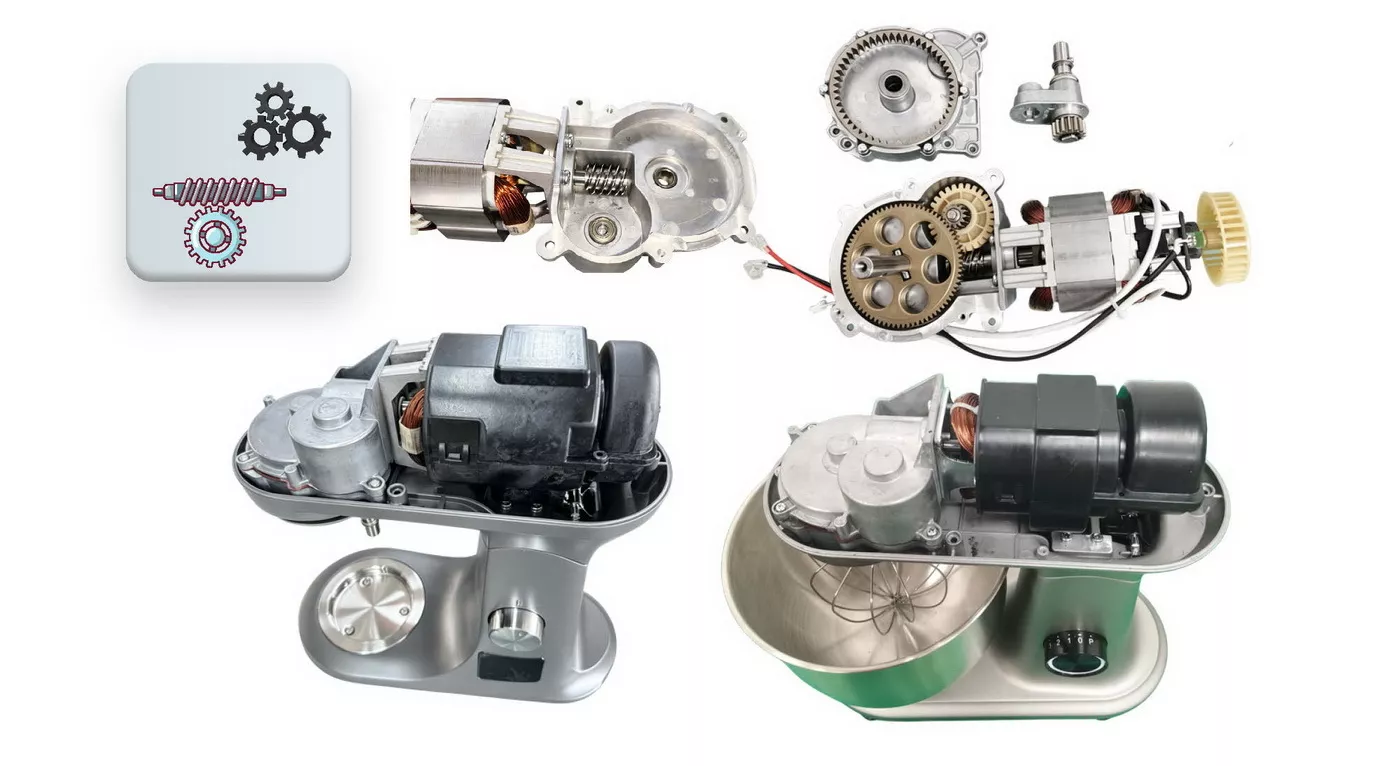

BESDA Worm and Gear stand mixer transmission assembly with motor gearbox and gear components

In a complete transmission assembly, gear durability is influenced by more than the visible gear material. Gear geometry, shaft and bearing support, gearbox rigidity, alignment, lubrication and operating load all affect how forces are transmitted through the system.

ENGINEERING FOCUS

Gear Material → Gear Geometry → Shaft & Bearing Support → Gearbox Structure → Lubrication → Alignment → Operating Load

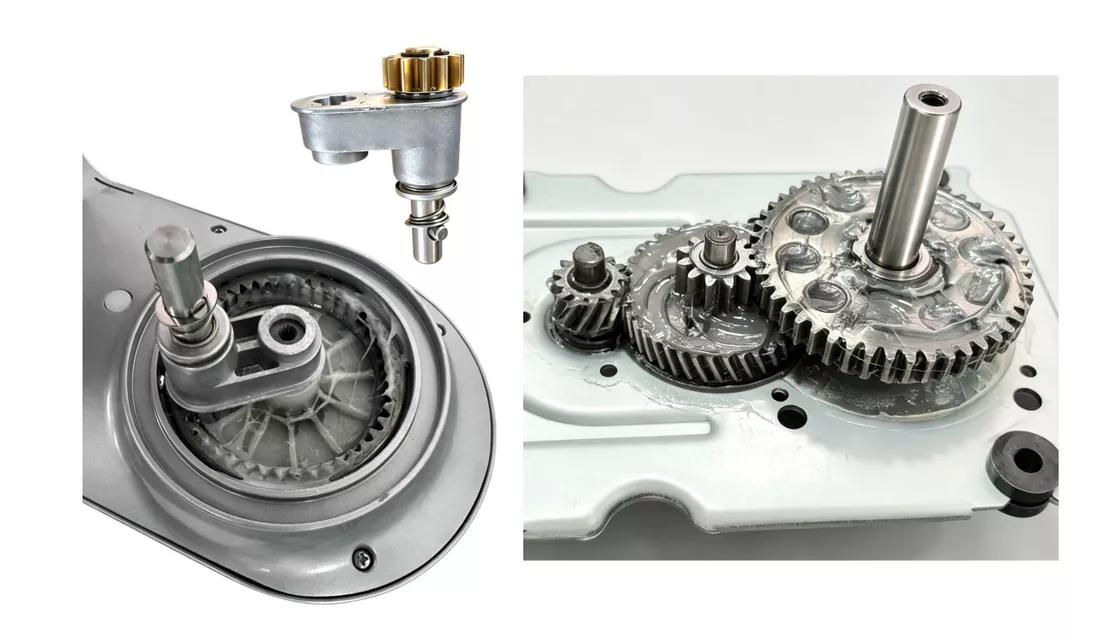

Heat-Treated Powder Metallurgy Gears

Material selection and manufacturing process are only part of gear engineering. For applicable metal gears, appropriate heat treatment can improve properties such as hardness, wear resistance and fatigue performance.

→ BESDA Example:Selected BESDA stand mixer platforms use heat-treated powder metallurgy metal gears in the planetary transmission. The suitability of these components still depends on correct geometry, engagement, lubrication, shaft support and the operating load of the complete system.

Gear Design and Manufacturing

Even a suitable gear material cannot provide reliable performance if gear geometry, dimensional accuracy, support or assembly is inadequate.

Gear Geometry

Tooth geometry and gear dimensions should be matched to the required load, ratio and operating conditions.

Tooth Accuracy

Dimensional consistency and appropriate tooth accuracy support stable engagement and repeatable mechanical performance.

Shaft & Bearing Support

Shafts and bearings help maintain gear position and stable rotation when the transmission operates under load.

Alignment

Proper alignment supports consistent gear engagement and helps limit unnecessary wear, noise and vibration.

Gearbox Structure

The supporting gearbox and surrounding structure help maintain component position and alignment under mechanical load.

Manufacturing Consistency

Consistent component manufacturing and assembly help maintain comparable performance across production units.

→ Engineering Principle:A strong gear material cannot compensate for poor geometry, inadequate support, incorrect alignment or inconsistent manufacturing.

Heat Treatment and Lubrication

Material properties and gear geometry are only part of long-term transmission performance. For applicable designs, heat treatment and lubrication also influence wear behavior and durability.

Heat Treatment

Where applicable, appropriate heat treatment can improve properties such as hardness, wear resistance and fatigue performance. The required treatment depends on the material, gear design, manufacturing process and intended operating conditions.

Lubrication

Appropriate lubrication helps reduce friction, heat generation and wear between interacting components. Lubricant selection and application should match the gear materials, operating temperature, load and intended service conditions.

What Determines Gear Durability?

Gear durability is a system result. It develops from the interaction between component design, manufacturing quality, mechanical support and the loads applied during actual operation.

Factor	Why It Matters
Material	Determines relevant mechanical, wear and manufacturing characteristics.
Gear Geometry	Influences tooth engagement, load distribution and transmission behavior.
Heat Treatment	Where applicable, influences hardness, wear resistance and fatigue performance.
Lubrication	Helps control friction, temperature and wear between interacting components.
Support & Alignment	Helps maintain stable component position and appropriate gear engagement under load.
Operating Load	Higher or repeated mechanical loads increase stress and can accelerate wear if the system is not appropriately designed.
Manufacturing & Assembly	Dimensional consistency and assembly quality influence repeatability and actual transmission performance.

→ Key Point:Gear life cannot be predicted from material alone. Representativedurability testingis more useful when evaluating how the complete system performs over time.

What Should B2B Buyers Check?

For OEM, ODM and private-label sourcing, gear-system evaluation should combine specifications with representative sample and durability evidence.

Gear Specification

Gear material
Gear type and configuration
Dimensions and ratio
Expected application and load

Design & Manufacturing

Manufacturing process
Gear geometry and tooth accuracy
Shaft and bearing support
Alignment and assembly consistency

Durability

Heat treatment where applicable
Lubrication
Representative operating load
Durability-test evidence

Supplier Evidence

Relevant specifications or drawings
Material information where appropriate
Sample evaluation
Available quality or test records

→ B2B Buying Recommendation:Do not use “metal gears” as a stand-alone quality criterion. Evaluate the material, gear design, support structure, lubrication, manufacturing consistency and actual performance under representative loads.

BESDA Technical Perspective

Gear Durability Is a Complete-System Result

A reliable stand mixer gear system requires appropriate materials, gear geometry, manufacturing accuracy, mechanical support, lubrication and operating conditions. These factors must also be matched to themotor output and load requirementsof the complete mixer.

For B2B product development, the appropriate gear solution should therefore be selected according to the intended application, expected load, transmission architecture, durability requirement and target product positioning.

→ Bottom Line:Do not ask only, “Are the gears metal?” Ask how the complete gear system is designed, supported, lubricated, manufactured and validated for the intended operating load.
